Our top-of-the-line model. It features a mobile app, a display screen, precise 1-amp current adjustment

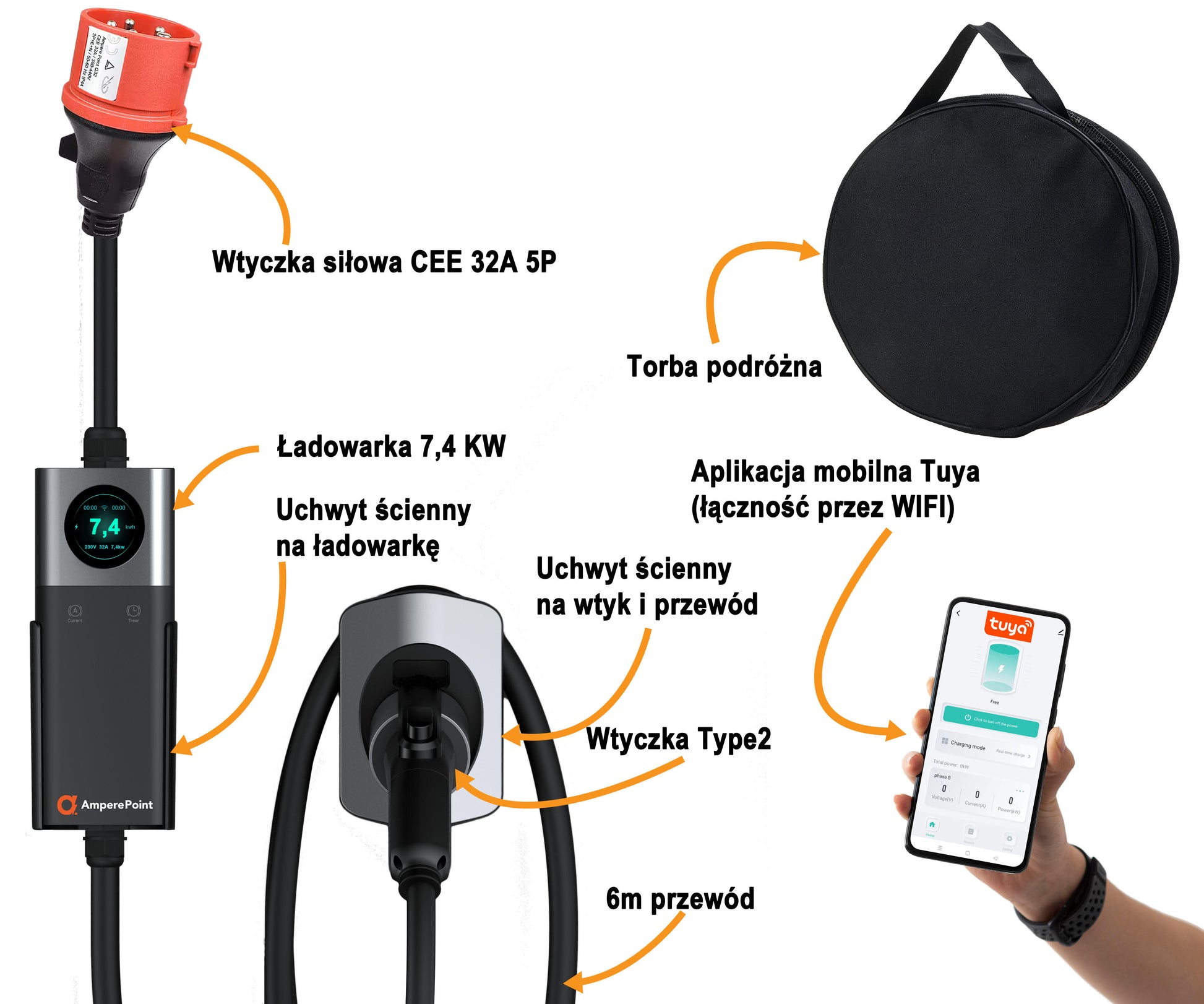

This model includes a display, wall and cable mounts, and a storage bag – offering more functionality and convenience
Our most basic model, equipped with a 5-meter cable and a convenient carrying bag

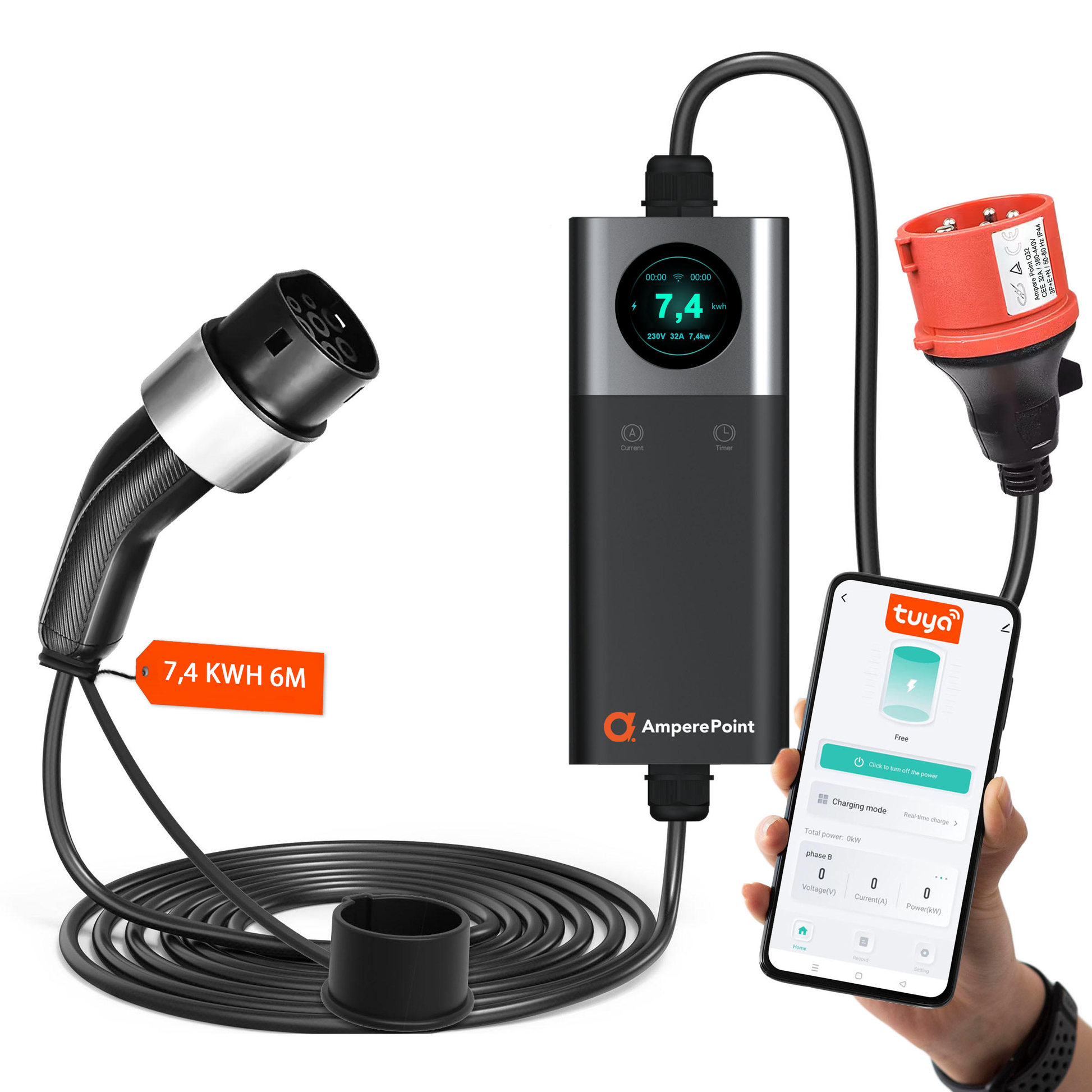

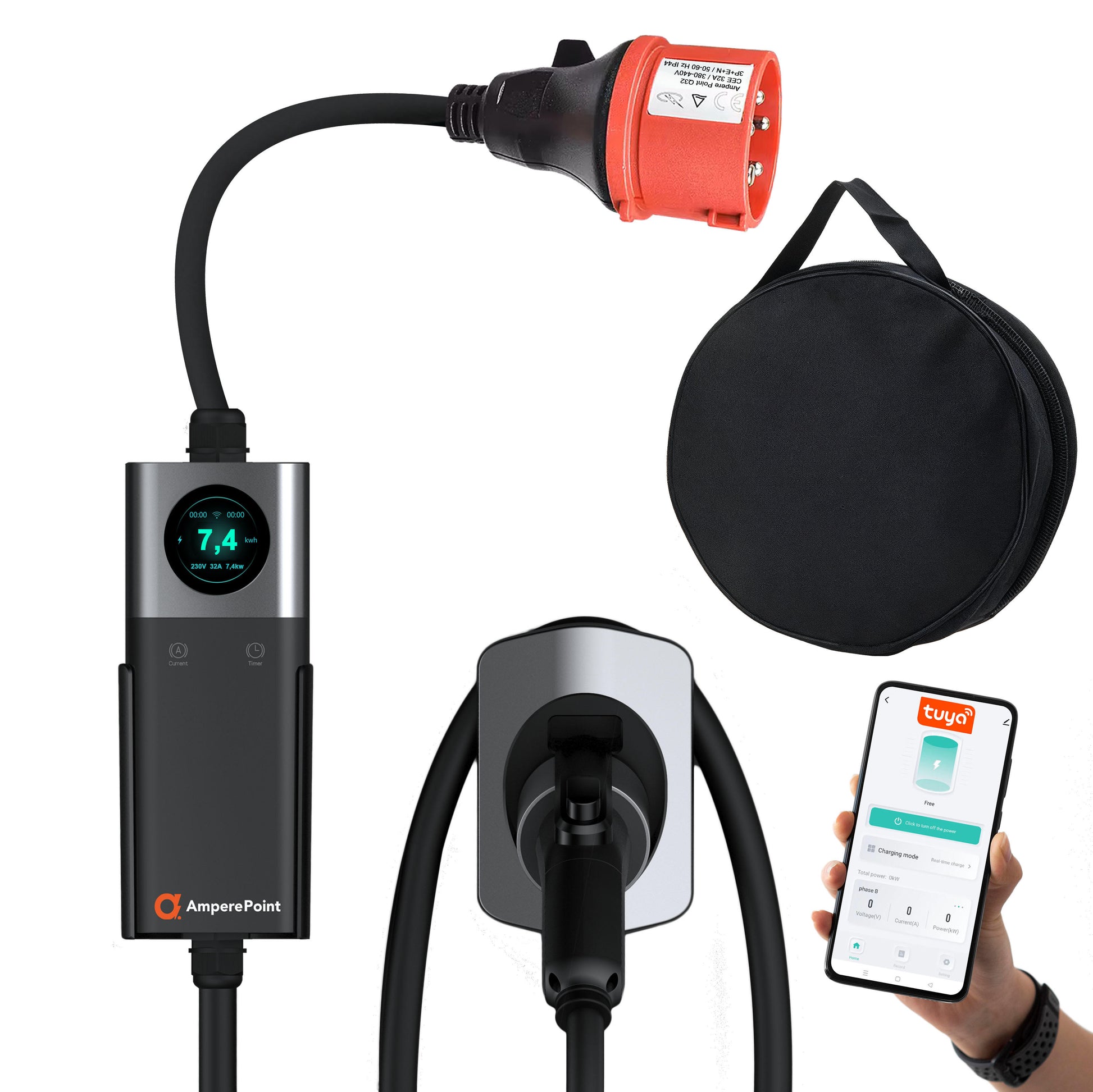

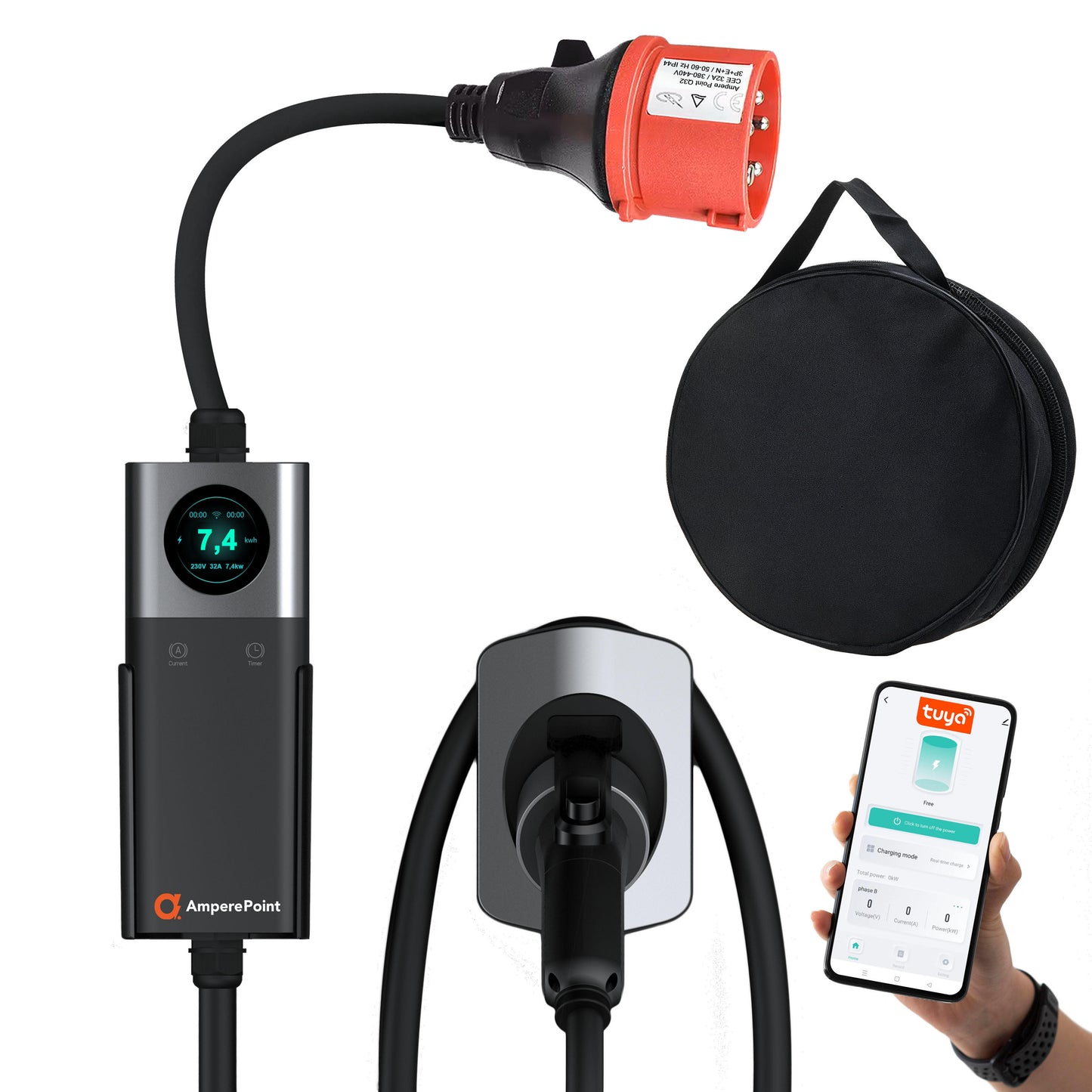

Type 2 EV Charger is compatible with all-electric vehicles and plug-in hybrids. Full compliance with IEC 61851 and IEC 62196 standards. Dustproof and waterproof - IP66.The charger is compatible with all-electric cars and hybrids equipped with a Type 2 socket. Aluminum body and WIFI (Tuya app).
✅ Improved reports in the Tuya app✅ Enhanced waterproofing✅ More detailed error messages✅ Easier current adjustment – the interface suggests how many kWh you'll get based on selected amperage✅ Simplified schedule setup – easily set delay time and charging duration✅ Better presentation of charging info before, during, and after the session✅ Charging session memory – review your last charging session without the mobile app or Wi-Fi✅ New, larger carrying bag
☑️ Maximum charging efficiency and comfort – integrated Type 2 cable and 7,4 kW charging power (32A x 1-phase).
☑️ Modern design – equipped with a 2.4" display showing the current charging status, energy consumption, and power parameters, allowing you to monitor the charging process. The screen informs you about the charging status, giving you confidence that everything is working correctly.

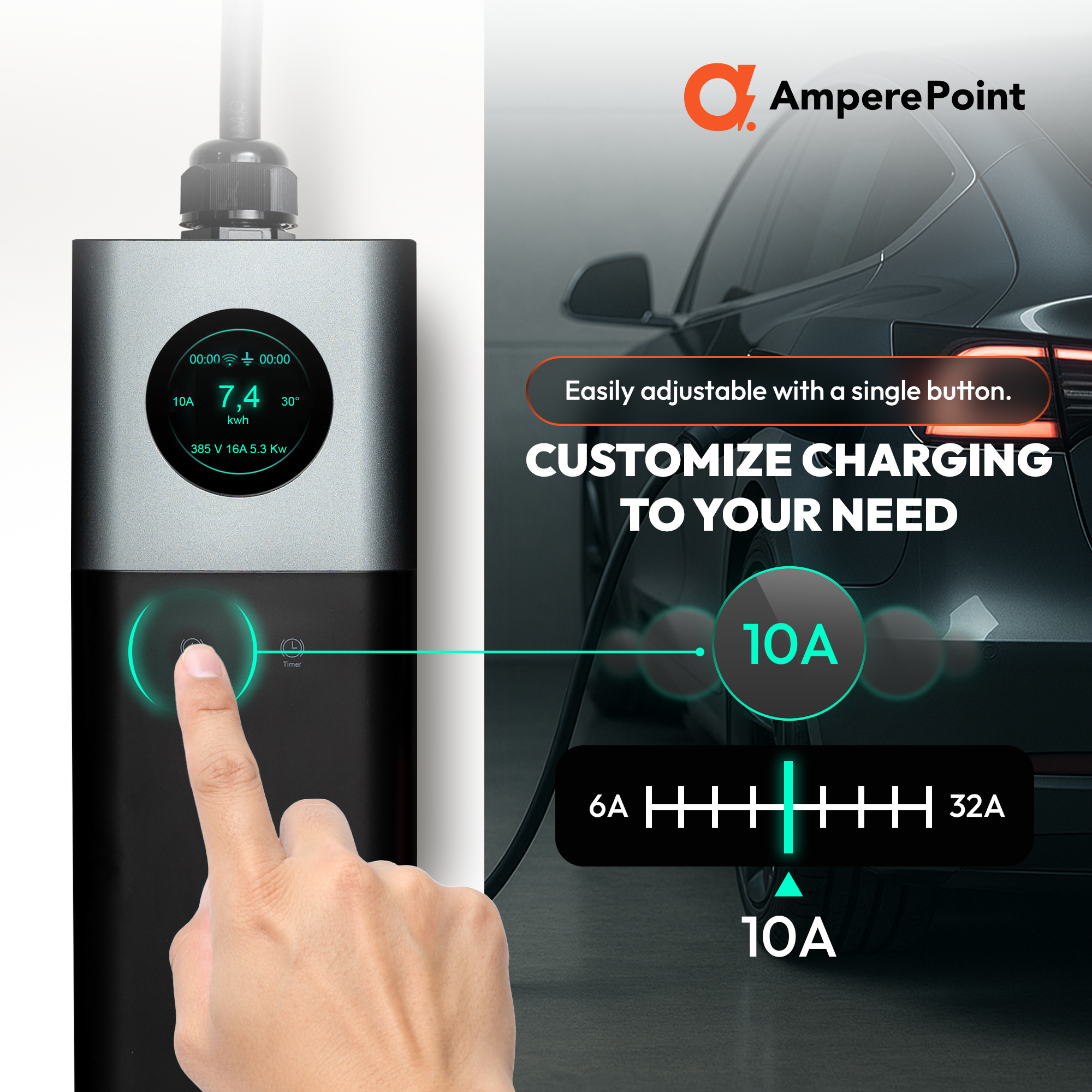

☑️ Smart features – adjustable charging power (6–32A – adjustable in 1A steps) and the ability to schedule charging to optimize energy consumption during off-peak rates. The charger remembers the last used current setting (in amps).
The charger also works properly when connected to a single phase using an adapter.
☑️ Safety and protection – protection against overload, overvoltage/undervoltage, short circuits, residual current protection, grounding protection, surge protection, and overheating protection.
The charger is equipped with an intelligent chip that automatically corrects errors during charging. It reacts in real time whenever any parameter exceeds the norm, ensuring stable operation of the device and the safety of the user, the charger, and the vehicle. With an IP66 certification, the charger guarantees water and dust resistance, making it suitable even for challenging outdoor conditions.
Additionally, the charger offers a range of advanced protective mechanisms, including:
✅ Overvoltage and Undervoltage Protection – Automatic shutdown in case of excessively high voltage (above 265V for single-phase or 459V for three-phase) or excessively low voltage (below 80V). This feature protects the charger and the vehicle from potential damage.
✅ Grounding Protection – Continuous monitoring of the grounding wire’s status. Automatic charging shutdown in case of disconnection or high resistance prevents the risk of electric shock.
✅ Leakage Protection (RCD) – Activated when a leakage current of 30mA AC or 6mA DC is detected, safeguarding the user from electric shocks.
✅ Overcurrent Protection – Automatically disconnects power if the current exceeds a safe threshold (e.g., 35.2A for a 32A charger), preventing overheating and damage to the device and the vehicle.
✅ Lightning Protection – Protects against surges up to 2000V AC or 2500V DC, ensuring safety during storms and power spikes.
The charger is designed with reliability and safety in mind, providing the highest standards of protection for both home and outdoor use.

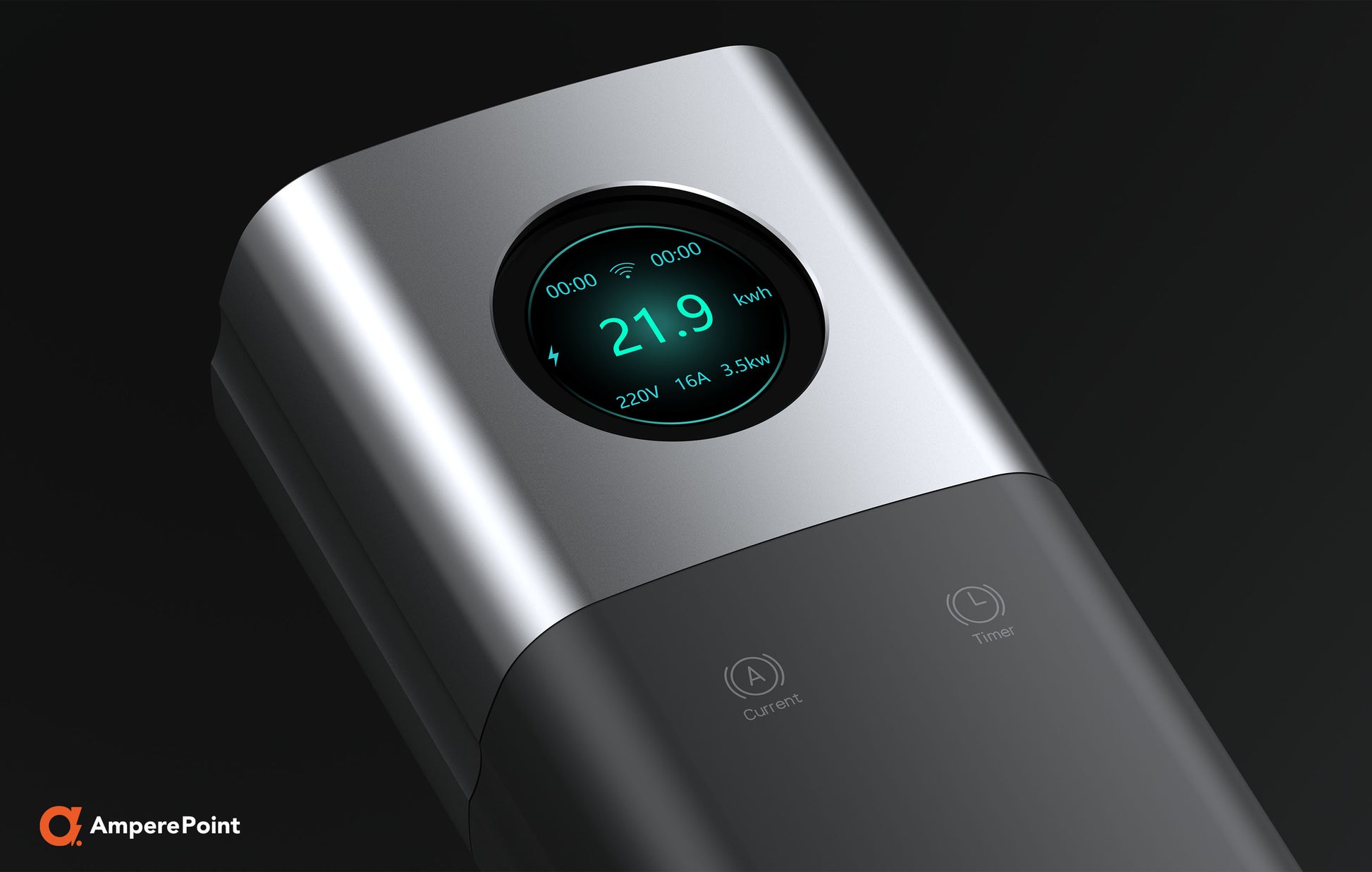

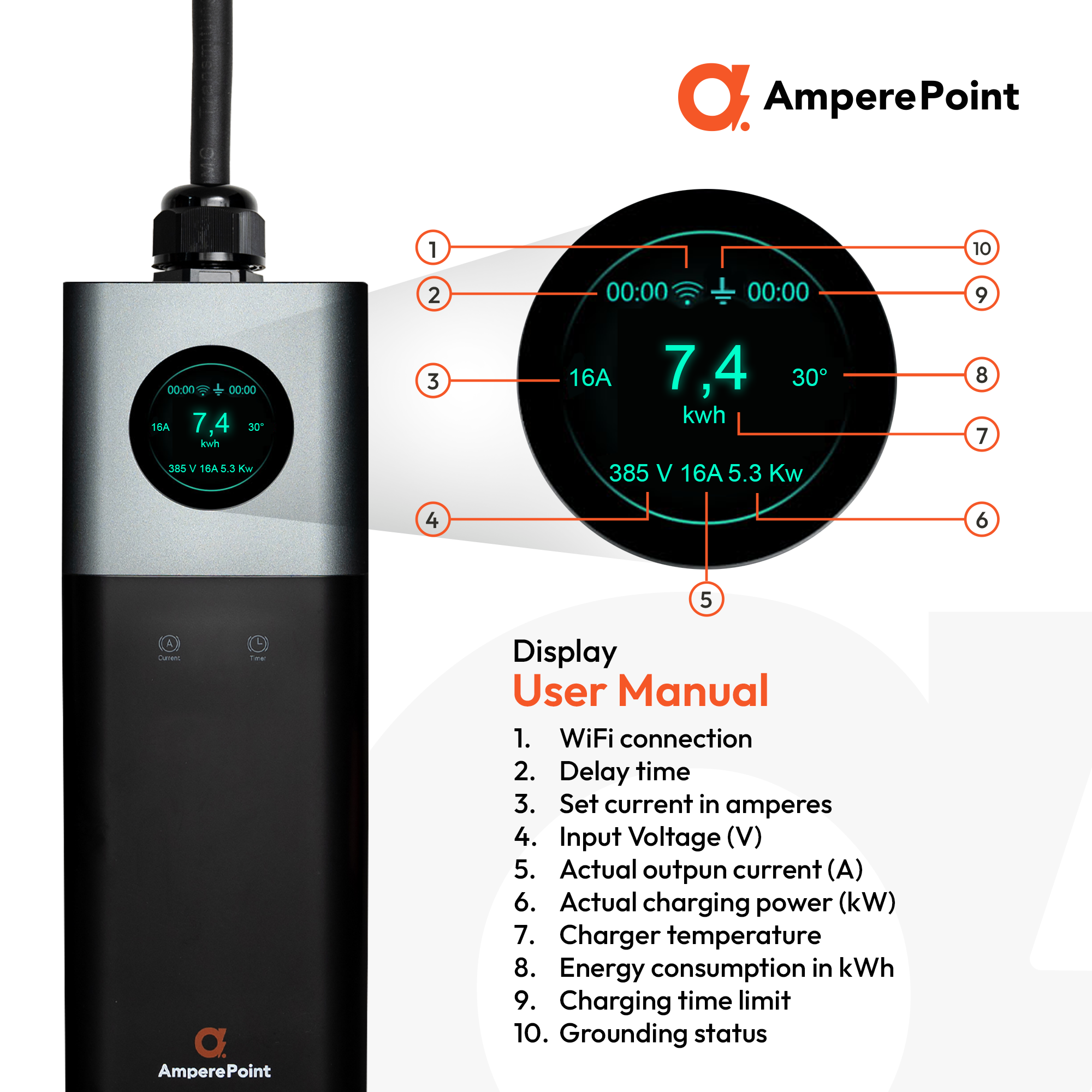

The product is equipped with a multifunctional 2.4" LCD display, which provides access to all the most important functions such as precise charging power, charging time, current intensity that can be adjusted using the "A" button, and real-time monitoring of the charger's operating temperature, all within easy reach.

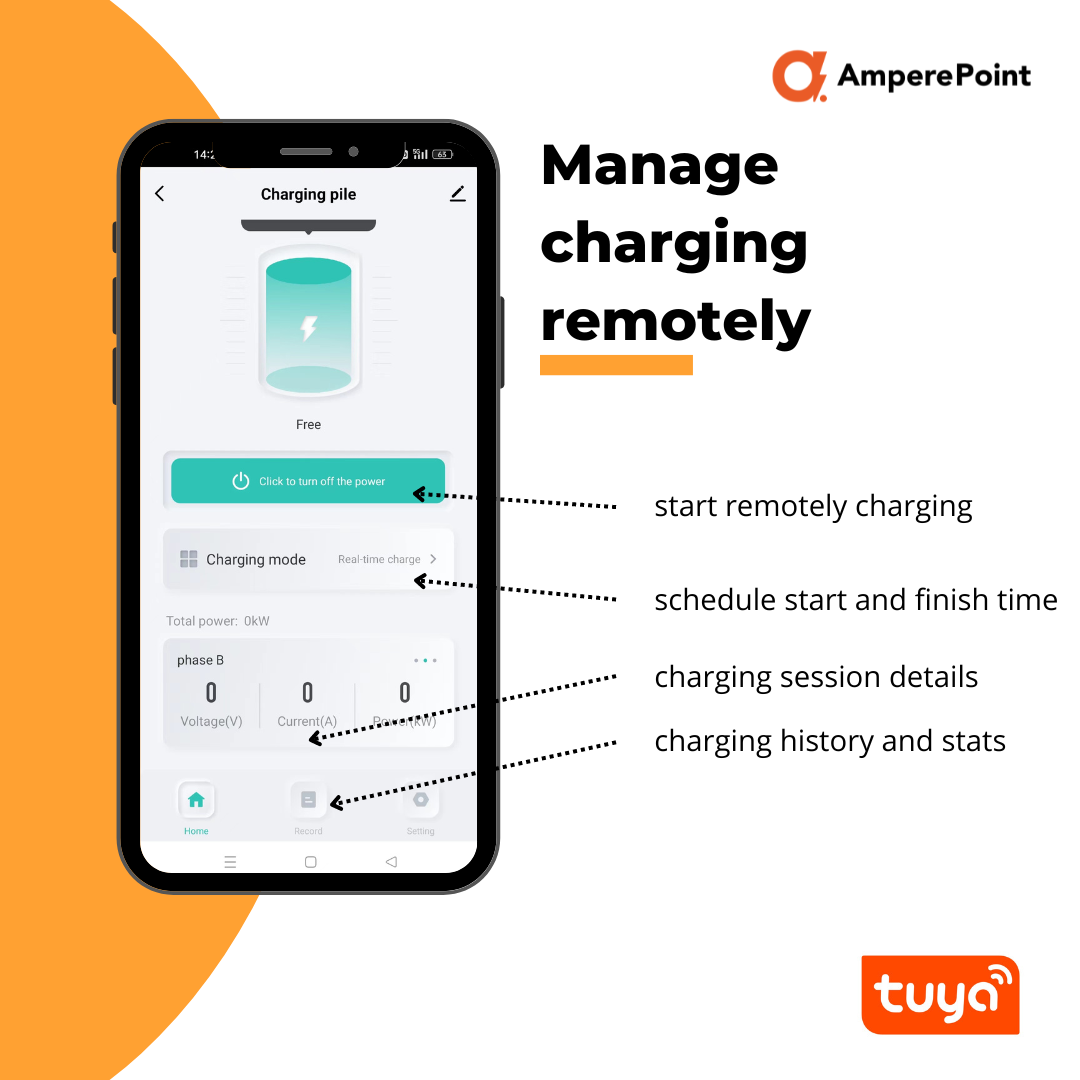

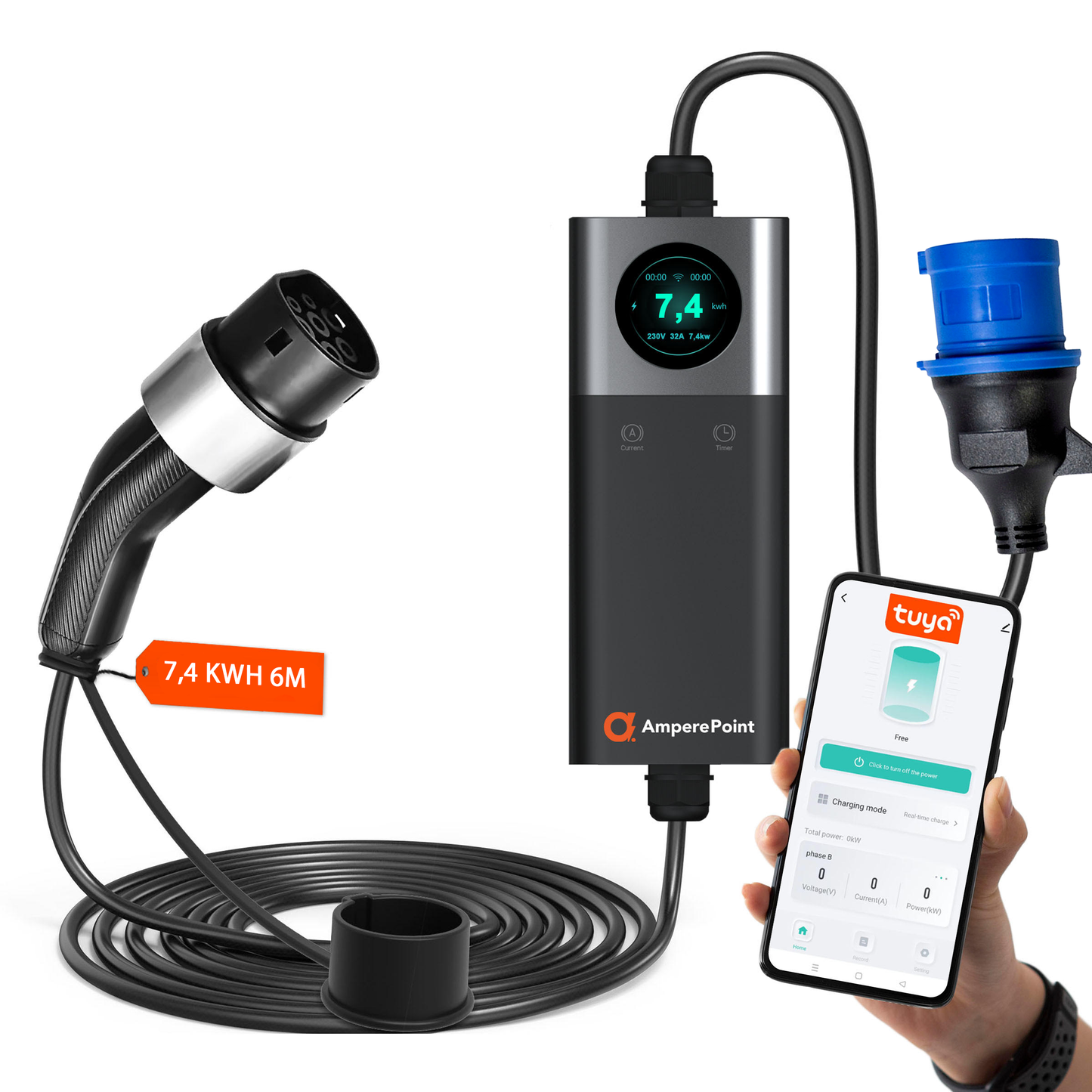

With the Tuya app, you can set a detailed charging schedule and create automation rules within your Smart Home system (e.g., charging only on sunny days using your solar panels).
The charger is equipped with WiFi functionality, which means you can remotely manage it from anywhere in the world!
Additionally, the charger features an intelligent chip that automatically detects and corrects charging errors. It responds appropriately if any parameter exceeds safe limits, ensuring stable and safe charger operation.

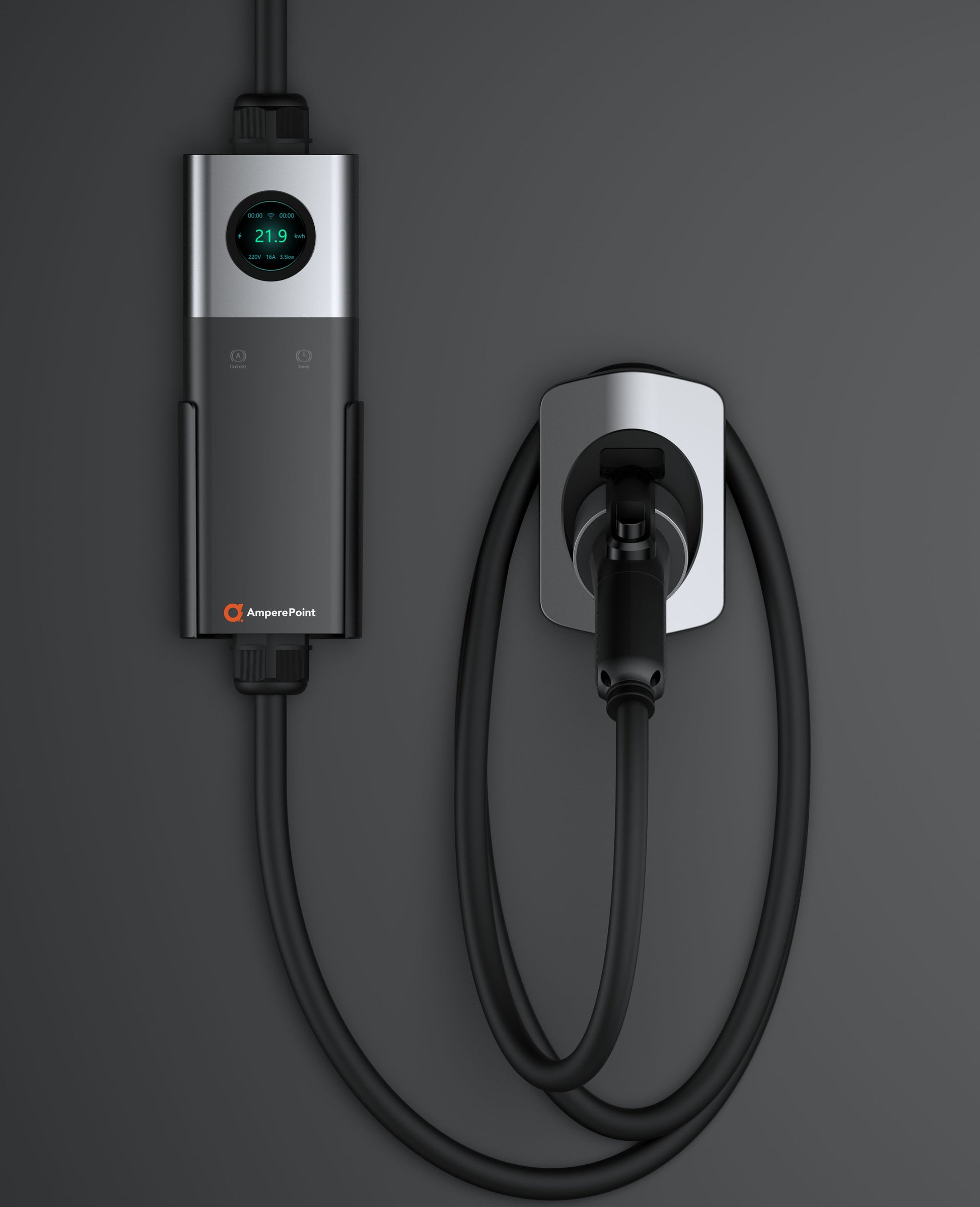

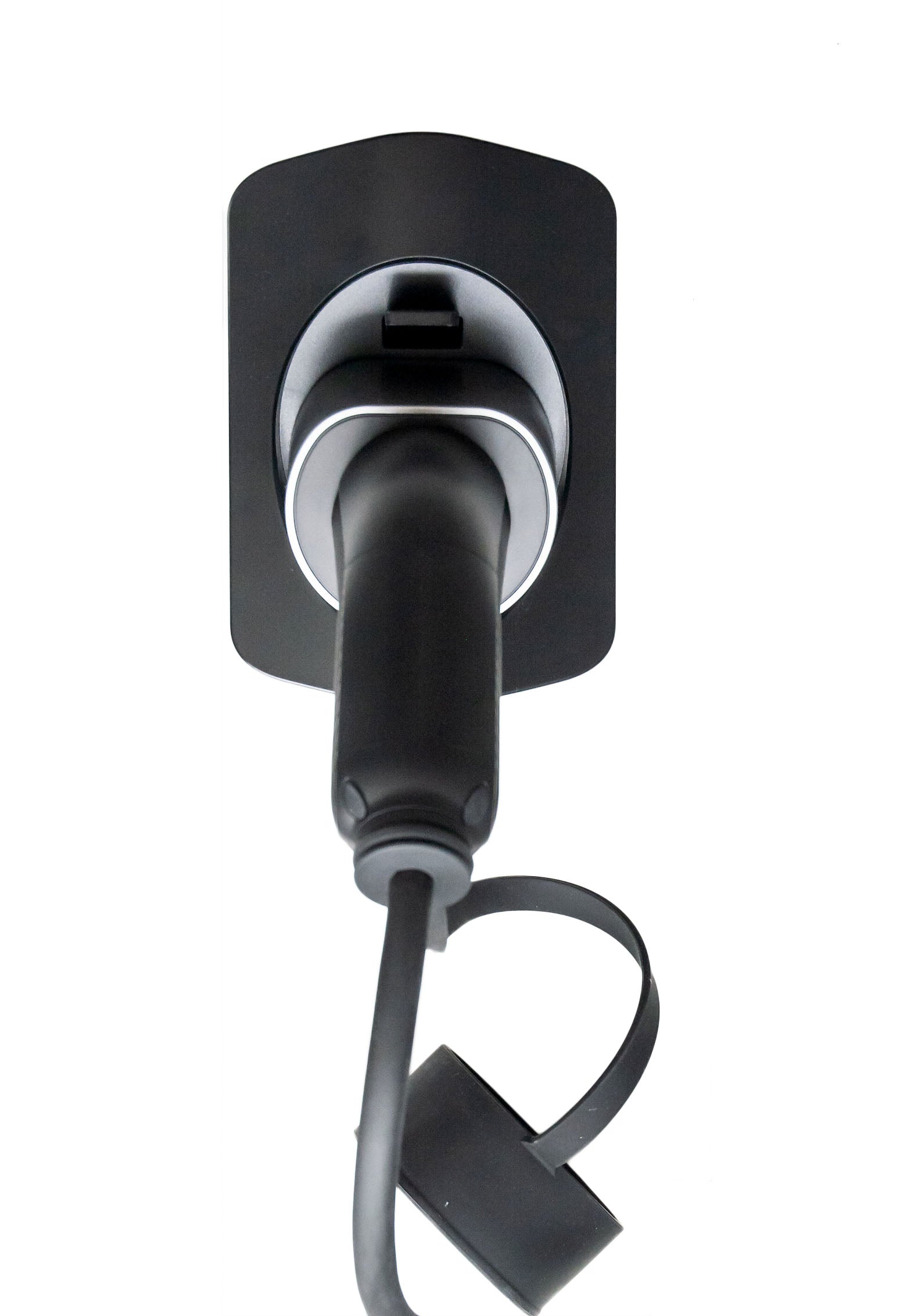

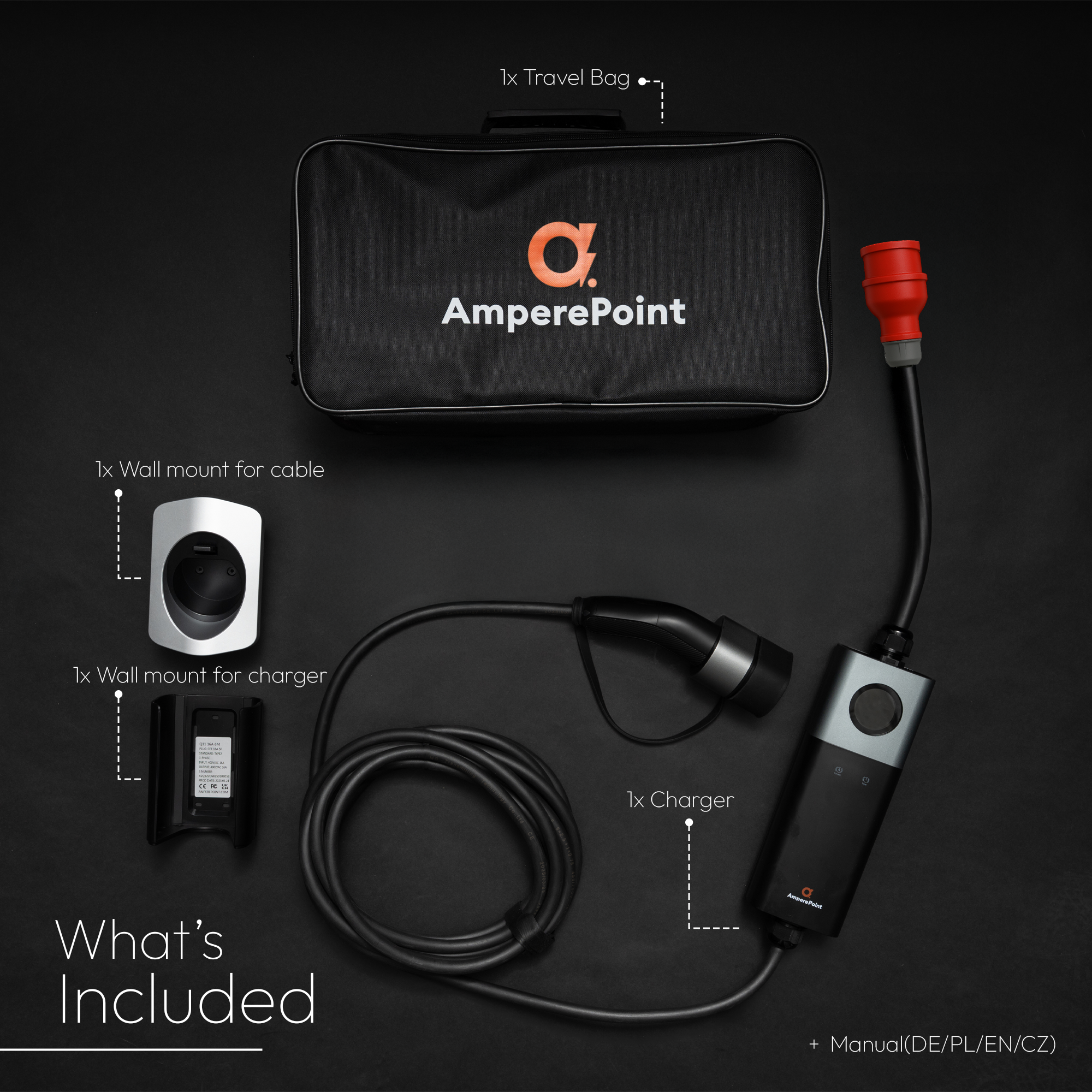

The charger comes with a wall mount for the cable and a holder for the charger itself, allowing for convenient installation on a wall. This not only saves space but also helps maintain a clean and organized environment in your garage, driveway, or workplace. Thanks to this setup, the charger is always within reach and ready to use, while the cables stay neatly stored and off the ground.

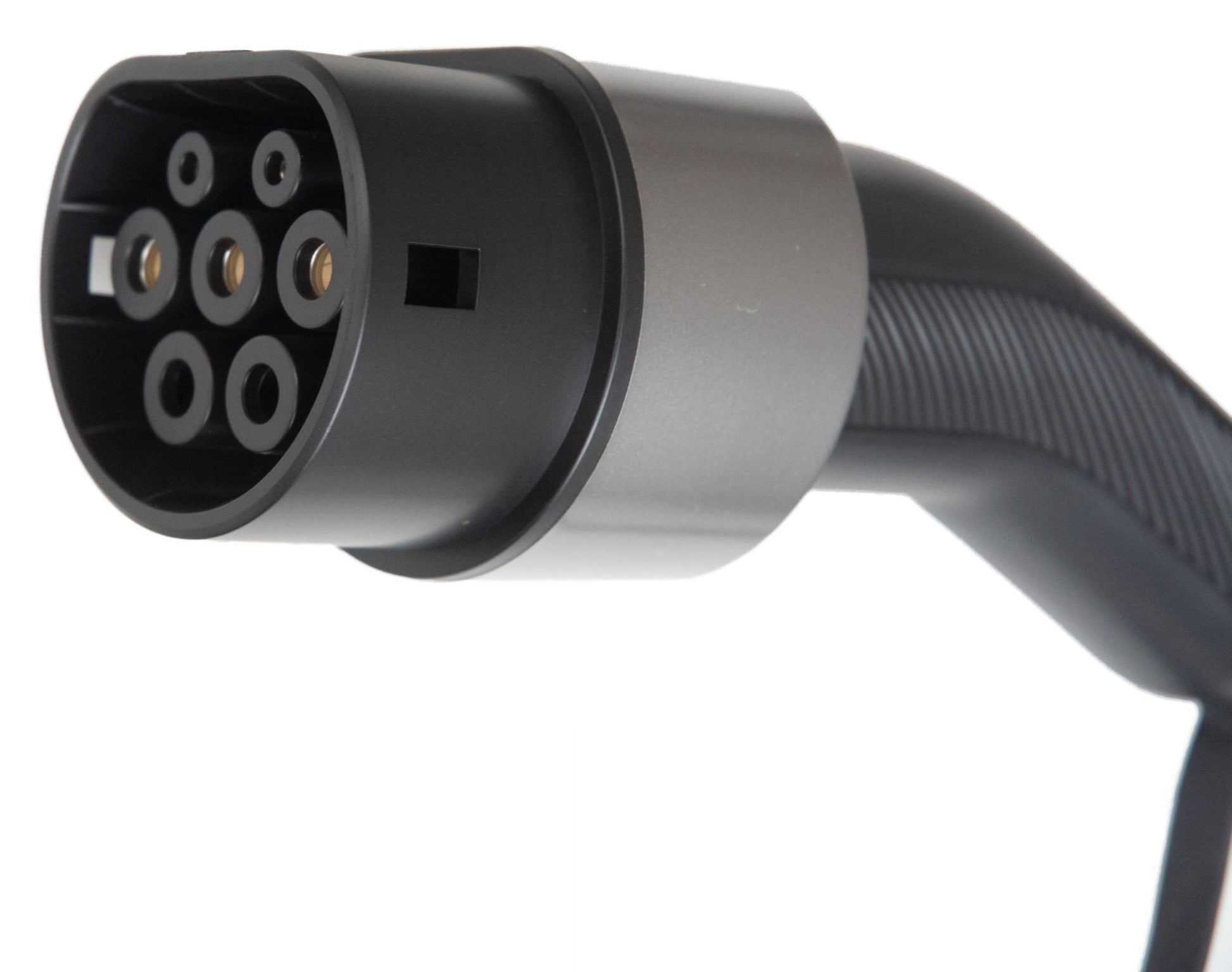

This charger is compatible with all EV (Electric Vehicles) and Plug-in Hybrid vehicles equipped with a Type 2 socket.Examples of Compatible Vehicles:
Buy the Charger in a Set and Save!
Adapter Type 2 (female) - Type 1 (male)
249,00 zł

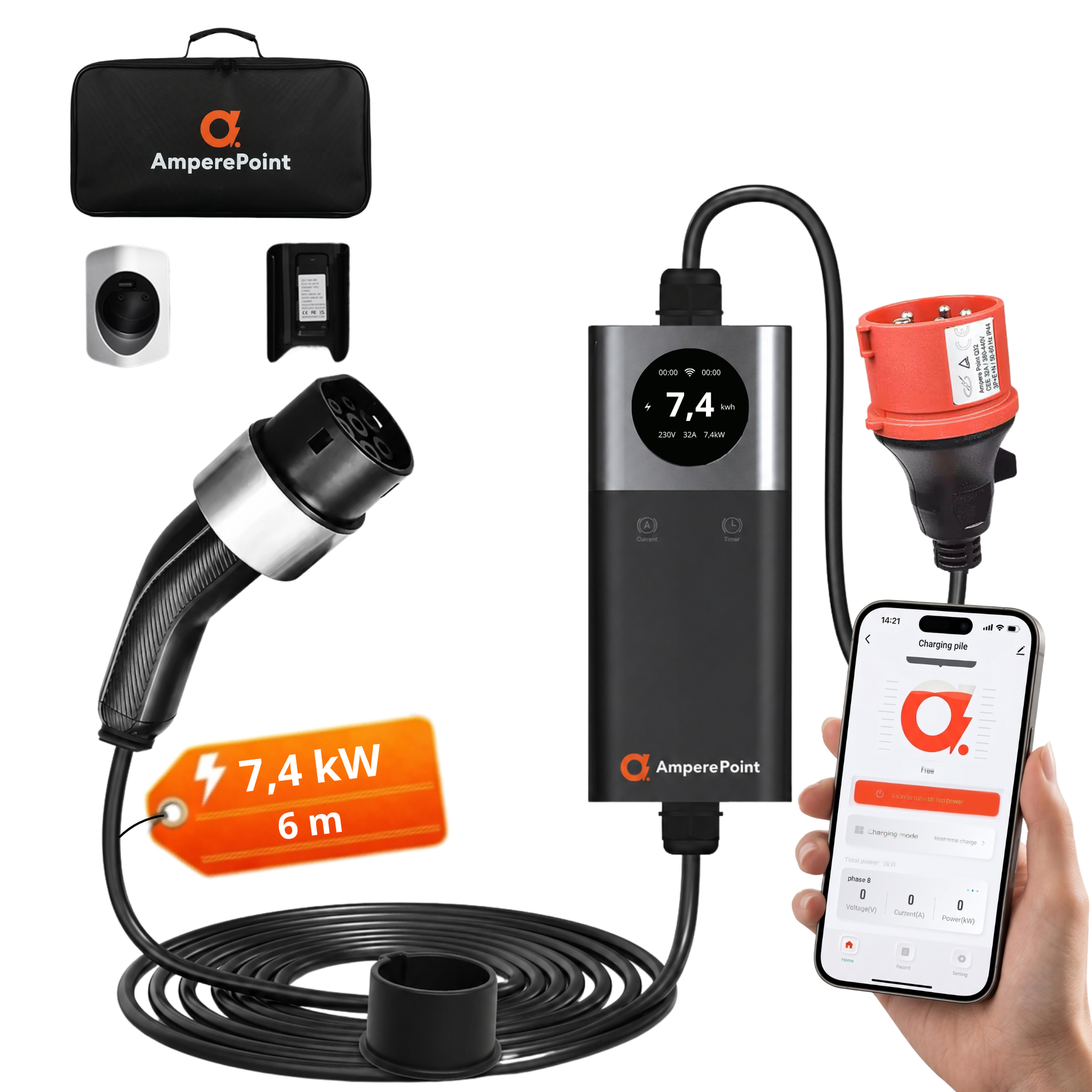

Portable Charger Q74 - 32A, 7.4kW, Type 2
1.099,00 zł
Suma:
1.348,00 zł
Ampere Point
No se pudo cargar la disponibilidad de retiro
Free courier delivery
Testing available
Pickup available at Warehouse - Gdynia
Usually ready within 2 hours
30 days return policy
Professional customer service
Check availability in other stores
High quality product, adjustable output power and ability to control via app.
Bardzo dobra ładowarka . Intuicyjna obsługa . Dobrze dogaduje się z samochodem . Dobrze działa w aplikacji .
Byłem niepewny dokonując tego zakupu między innymi ze względu na cenę. Używam nowego Nissan Leaf. Jestem bardzo zadowolony z wykonania oraz działania. Wszystkim obserwującym ten produkt gorąco polecam.
+ Cena, zetaw z uchwytem i wyświetlaczem
- Na razie nie znalazłem
Bardzo dobra jakość wykonania, w tej cenie wręcz bezkonkurencyjna, prąd ładowania można regulować z dokładnością co do 1A (w innych ładowarkach zazwyczaj jest regulacja 16, 20, 25, 32A). Na plus zastosowanie popularniejszej wtyczki 5P 32A zamiast 3P 32 jak w większości ładowarek 1 fazowych 7,4kW. Kompaktowe rozmiary, czytelny wyświetlacz, bezprzewodowa łączność, testowałem wiele ładowarek i z tą zdecydowanie zostaną na dłużej.
+ Jakość wykonania, design, rozmiary, czytelny wyświetlacz, cena, wsparcie techniczne
The choice of charger depends on the vehicle's specifications, such as maximum ACcharging power, the number of phases (single-phase or three-phase), and connectortype (typically Type 2 in Europe). A single-phase vehicle will use only one phase of athree-phase charger. Before purchasing, check your car's maximum AC chargingcapacity or contact us – we’ll gladly help you select the right equipment.
Yes, but this method has limitations. Charging from a standard 230V outlet allows amaximum current of 16A, which equals about 3.7 kW. Some vehicles, especiallyplug-in hybrids, do not support faster charging.
Charging time depends on the battery capacity, charger power, and type of current(AC/DC). As a rule of thumb, a car with a 50 kWh battery and an 11 kW charger willtake approximately 50 ÷ 11 = 4.5 hours to charge. This is an estimate that can varybased on factors like the car's onboard charger efficiency, charging efficiency, batterycondition, and ambient temperature.
Yes, home charging is usually more economical. The average electricity cost inPoland ranges from 0 (e.g., solar panels) to 1 PLN/kWh, resulting in a cost of driving100 km at around 0–15 PLN. Public station costs can range from 1.50 PLN/kWh to3.50 PLN/kWh or more, depending on the operator and charging type.
In single-family homes, special permission is usually not required, but it's a good ideato consult an electrician to ensure compliance with regulations. In multi-familybuildings, approval from the housing association or building manager may benecessary.
Yes, all our chargers are certified with water and moisture protection (IP65, IP66 –depending on the model).
It is not recommended to use extension cords for charging electric cars. Standardextension cords may not handle high power loads, which could lead to overheating oreven fire. If you must use an extension cord, it should be specifically designed forhigh power, meet appropriate quality standards, and be approved by the chargermanufacturer.
